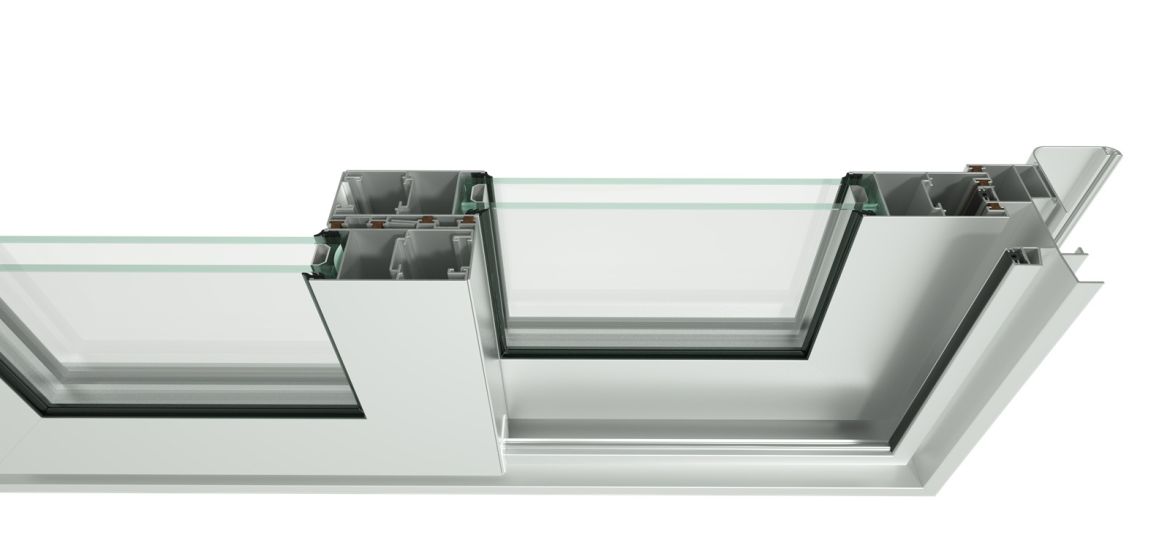

SMARTIA M14600 is a non-thermal insulated sliding system with exceptionally sleek lines. It meets modern architectural trends and the demands for exceptionally high performance, making it the ideal solution for warmer climates.
Key Information
- Basic system width 35 mm.
- Maximum natural lighting with only 23 mm visible aluminum at the overlapping point.
- Excellent wind pressure resistance performance, certified under extreme weather conditions.
- Easy access thanks to the low threshold. Ideal for multi-sash constructions.
- Wide variety of typologies, with alternative locking mechanisms.
- Smooth and easy sliding thanks to stainless steel tracks.
Certifications
General Characteristics
SYSTEM TYPE
Sliding
THERMAL INSULATION
No
EXTERNAL APPEARANCE
Curved, Flat
Technical Specifications
SASH DEPTH
35 mm
MINIMUM VISIBLE CONSTRUCTION HEIGHT
96,5mm
MINIMUM VISIBLE WIDTH OF CENTRAL MULLION (INTERLOCKING)
62 mm
MINIMUM VISIBLE WIDTH OF CENTRAL MULLION (OVERLAP)
23 mm
GLAZING TYPE
Single - Double
MAXIMUM GLAZING THICKNESS
up to 26 mm
MECHANISM
Sliding mechanism
SEALING TYPE
Perimeter brush seals with triple membrane
Performance
WATER TIGHTNESS
CLASS 7A
AIR PERMEABILITY
CLASS 4
RESISTANCE TO WIND LOAD
C2/B2
Features
CONSTRUCTION TYPOLOGIES
Overlapping, Multi-sash, In-wall sliding, Pocket, Combinations with screen and shutter, Combinations with fixed panels
SASH WEIGHT
up to 180 Kg
