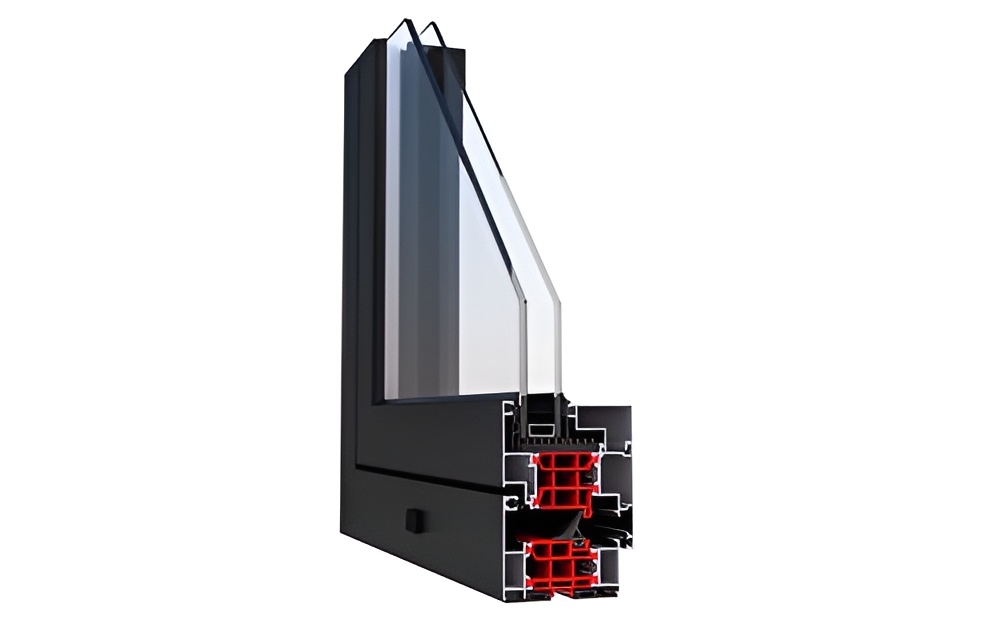

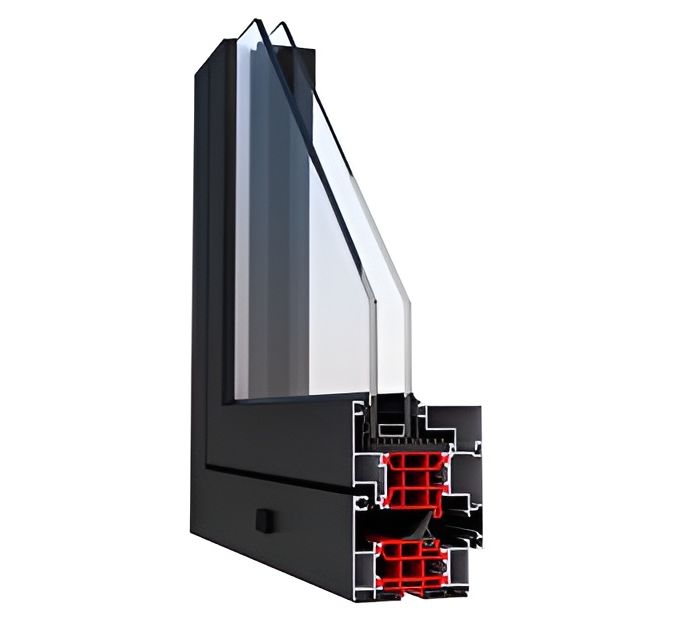

The Albio 129C Advanced system is the only system that, with a total frame thickness of just 78.3mm, offers high thermal performance with Uf= 1.48 Ug= 1.0 W/(m2K) and Uw=1.4 Ug= 1.0 W/(m2K), thanks to the use of special polyamides.
Basic Information
A special sealing component has been used, replacing the central gasket and offering additional improvement in thermal insulation capacity.
Its design with clean, straight lines offers a minimalist look and improved aesthetics, even providing the option of using a flush sash both internally and externally.
General Characteristics
SYSTEM TYPE
Casement - Tilt Turn
THERMAL INSULATION
Yes
Technical Specifications
FRAME DIMENSIONS
Width 66.5mm, height 72mm
SASH DIMENSIONS
Width 67.3mm, height 53.3mm
GLASS THICKNESS
25mm
ALUMINUM ALLOY
EN AW 6060T6, EN 15088:2005
ELECTROSTATIC PAINTING
According to European Standards QUALICOAT
ANODIZING
According to European Standards QUALANOD
DIMENSIONAL TOLERANCES
EN 12020-2
SEALING GASKETS
EPDM / EPDM Foam
Performance
WATER TIGHTNESS
Test Sample Dimensions (Double Sash): 1.40m X 1.40m: Class 8A (EN 12208:1999-11), Test Sample Dimensions (Single Sash): 1.50m X 1.50m: Class E1500 (EN 12208:1999-11)
AIR PERMEABILITY
Test Sample Dimensions (Double Sash): 1.40m X 1.40m: Class 4 (EN 12207:1999-11), Test Sample Dimensions (Single Sash with fixed part): 1.50m X 1.50m: Class 4 (EN 12207:1999-11)
RESISTANCE TO WIND LOAD
Test Sample Dimensions (Double Sash): 1.40m X 1.40m: Class C4/B4 (EN 12210:1999-11/AC:2002-08), Test Sample Dimensions (Single Sash with fixed part): 1.50m X 1.50m: Class C4/B4 (EN 12210:1999-11/AC:2002-08)
CHAMBER
Compatible with all multi-point locking systems
Features
THERMAL BREAK
24mm (PA 6.6, 25%GF)
THERMAL INSULATION UF
from 1.1 to 2.6 W/m²K
