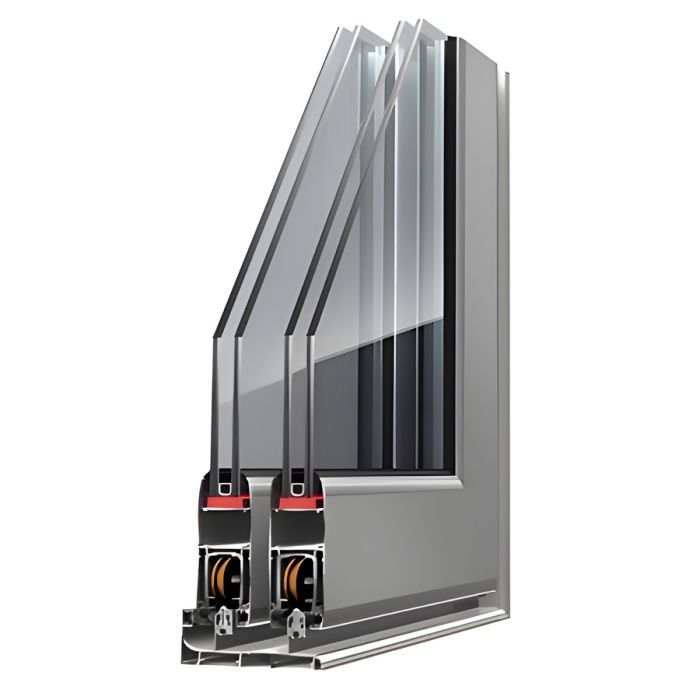

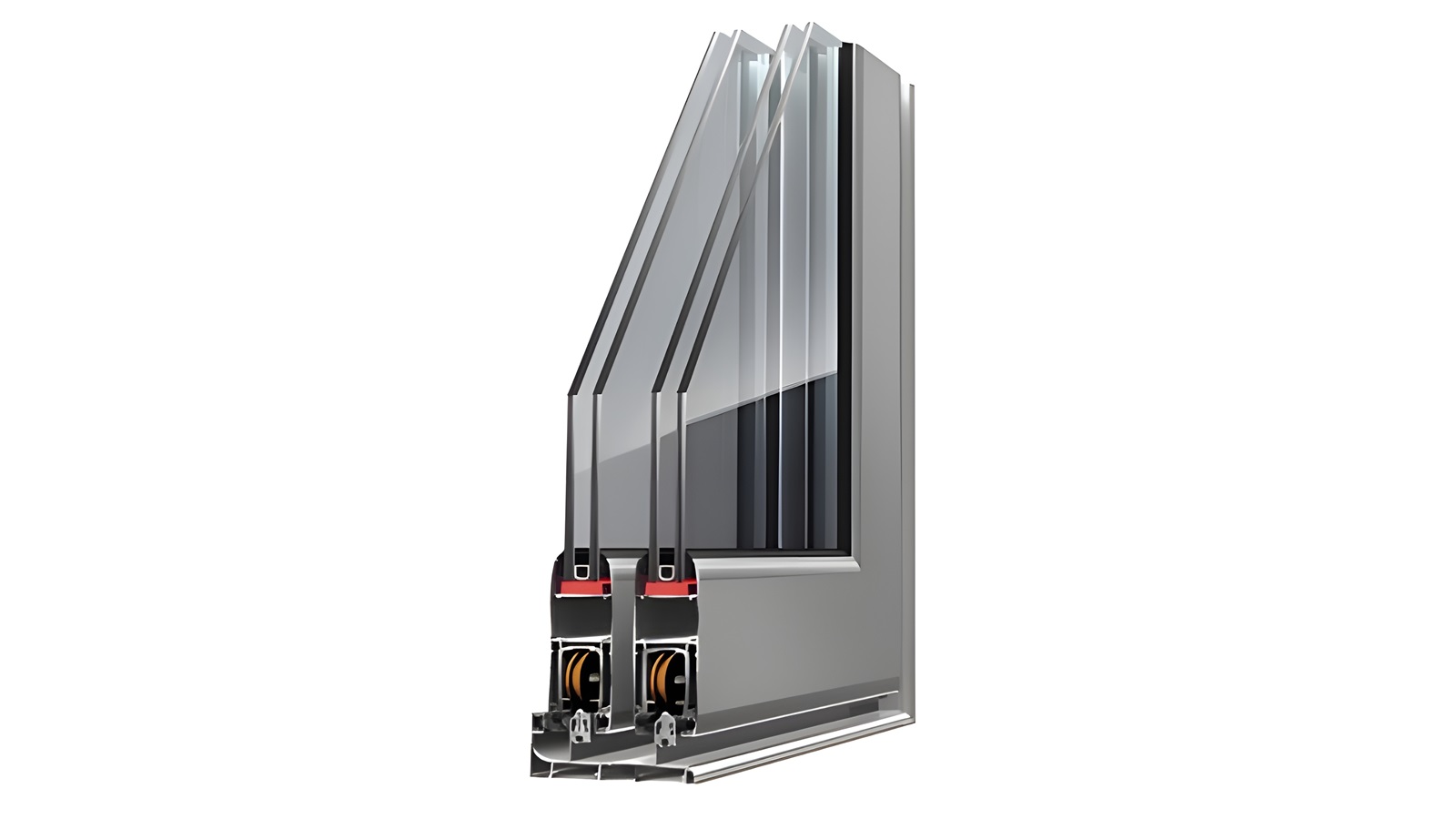

The Albio 205 series, with its classic design, is the ideal solution for designing and updating any space.
Key Information
Its watertightness is ensured with special brushes and gaskets applied to both the sashes and the guides. High-quality and durable, it is considered ideal for replacing old frames. Available in oval and embossed designs.
Applications

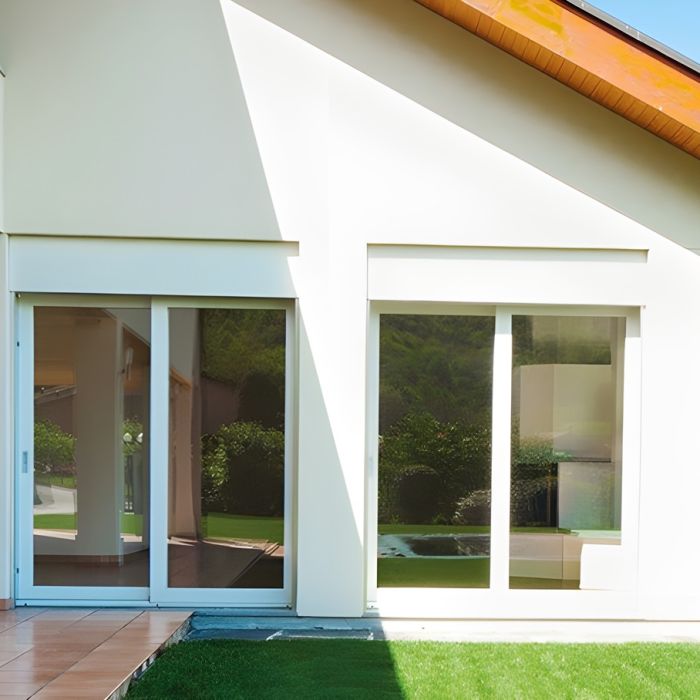

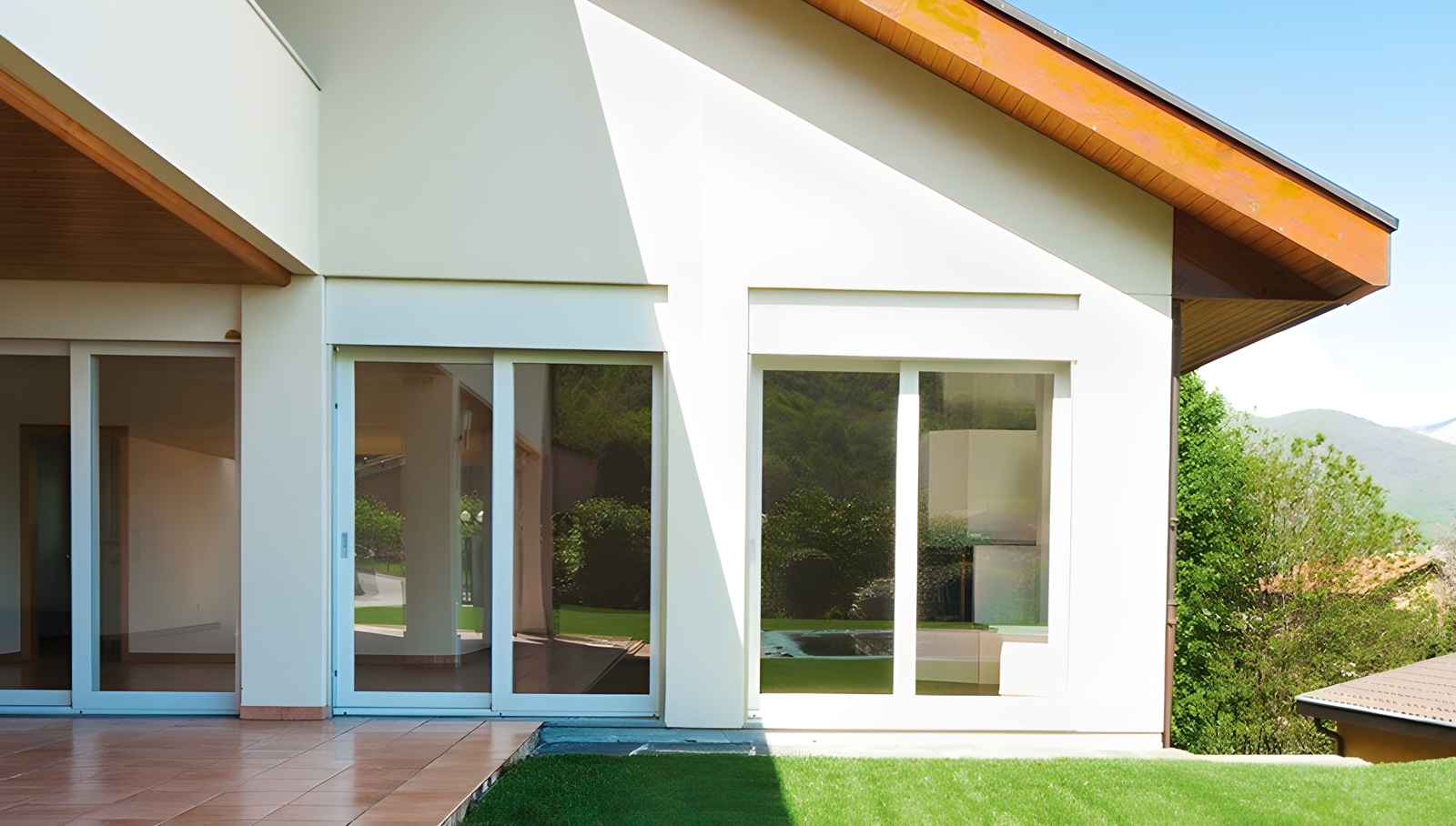

Balcony doors, Windows, parallel sliding or concealed, etc.
General Characteristics
SYSTEM TYPE
Sliding
THERMAL INSULATION
No
Technical Specifications
SASH DIMENSIONS
Width 33mm, height 74.4mm-85mm
GLASS THICKNESS
5-22mm
ALUMINUM ALLOY
EN AW 6063T6, EN 15088:2005
ELECTROSTATIC PAINTING
According to European Standards QUALICOAT
ANODIZING
According to European Standards QUALANOD
DIMENSIONAL TOLERANCES
EN 12020-2
SEALING GASKETS
EPDM
Performance
WATER TIGHTNESS
Test Dimension: 1.40m X 2.20m: Class 4A (EN 1027:2000 / EN 12208:2000) Inner guide Class 1A (EN 1027:2000 / EN 12208:2000) Outer guide
AIR PERMEABILITY
Test Dimension: 1.40m X 2.20m: Class 3 (EN 1026:2000 / EN 12207:2000)
RESISTANCE TO WIND LOAD
Test Dimension: 1.40m X 2.20m: Class A3 (EN 12211:2000 / EN 12210:2000)
