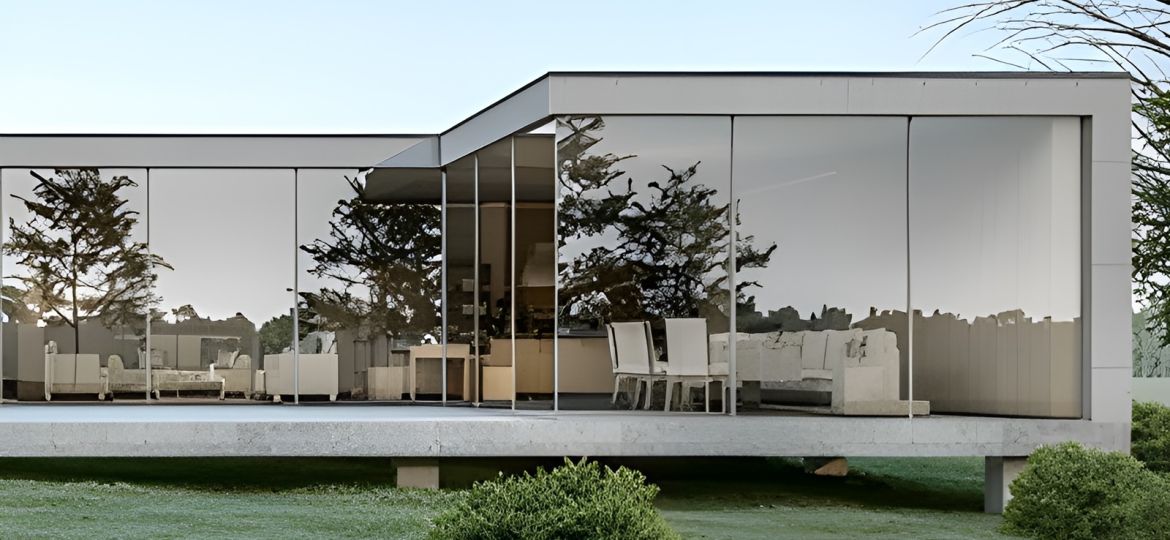

An innovative series of sliding systems, distinguished by their innovation and minimal design, with minimal or no visible aluminum profiles, for unlimited views, ultra-modern aesthetics, and superior quality of life.
Key Information
With low thermal transmittance values and excellent sound insulation, they enable the construction of all types of sliding systems, as well as unlimited movable sashes. Ideal for large-surface glazing, they can move sash weights up to 500kg and feature a flexible, specialized water drainage system with a visible or concealed sink.
These are the only minimalist sliding systems that allow for easy and quick replacement of the glass pane in case of breakage or component damage, without removing the frame!
General Characteristics
SYSTEM TYPE
Sliding
THERMAL INSULATION
Yes
Technical Specifications
GLASS THICKNESS
28-44mm
MANUAL SASH WEIGHT
max 400Kg
MOTORIZED SASH WEIGHT
400Kg+
Performance
WATER TIGHTNESS
EN 12208:1999-11 / Class: E750
AIR PERMEABILITY
EN 12207:12016-12 / Class: 4
RESISTANCE TO WIND LOAD
EN 12210:2016-03 / Class: C4/B4
SOUND REDUCTION
EN ISO 10140-2:2021-05, EN ISO 717-1:2010-12/ Rw=43db
Features
THERMAL TRANSMITTANCE COEFFICIENT
Uw = 1.38 W/m2K
